📚T-JSON Protocol

© Copyright Notice
This protocol is the exclusive property of Tofu Intelligence® and is protected by copyright law and treaties. Reproduction, redistribution, or other unauthorized use is prohibited.
The protocol package includes a sample client and source code to accelerate integration.

1. Test Applications and Source Code Downloads

We provide integration source code and test applications for TJSON Inspector - Qt, C++, MLink - Android, Kotlin, and BSLink - JavaScript. You may download, modify, and use them according to your project needs.
The Inspector application serves as a debugging tool and displays detailed communication data flows to help customers understand the protocol and perform secondary development.
The MLink application is provided as a compiled APK and can be used directly on Android tablets/phones for single-device control. Version 1.2 has been open-sourced, and version 1.3 adds map linkage display.
The BSLink application is provided as a compiled executable for Windows testing. Its integration source code is open-sourced, and the application version adds map linkage display.

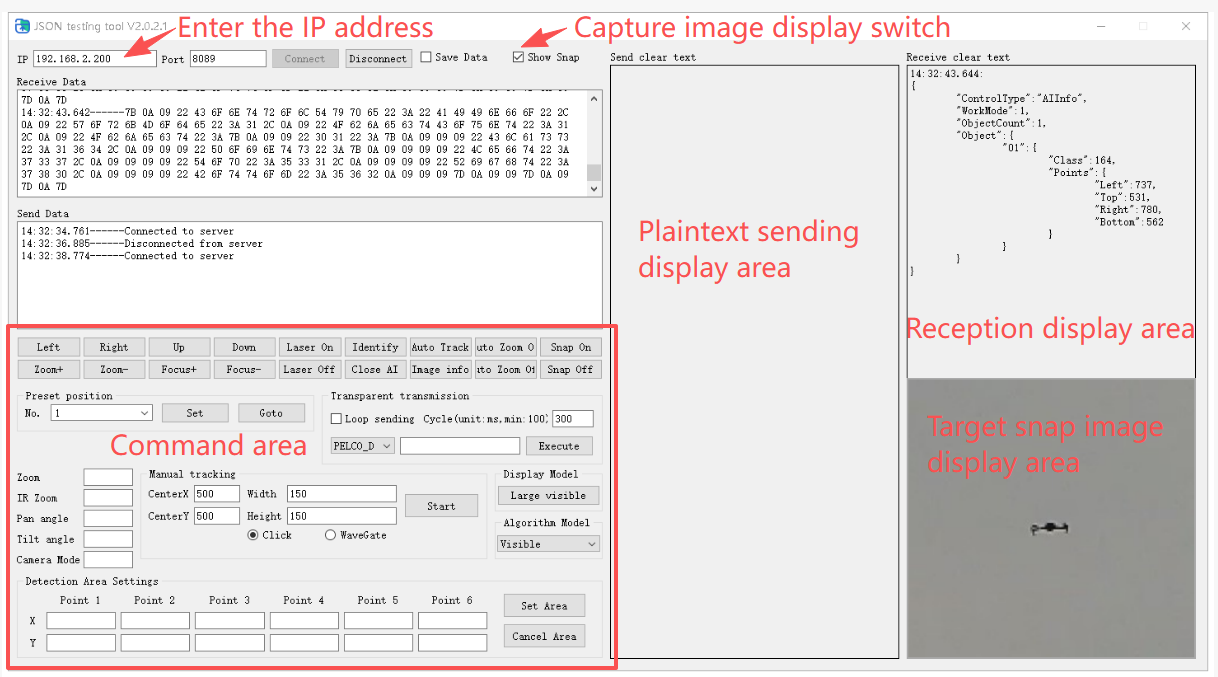

1.1 TJSON Inspector Application

Feature Highlights:
🟢 Target Snapshot Upload: Check "Show Snapshot Image" and enable "Snapshot Upload". Captured images will be stored in the Snap_image folder, as shown below.

🟢 Save Data: After data transmission/reception starts, check "Save Data". The raw hexadecimal send/receive data will be saved under the log folder in the application directory.

🟢 Serial Pass-Through: Serial pass-through supports three modes: PELCO_D, VISCA, and VISCA_IR, corresponding to the gimbal, visible-camera, and thermal-camera channels respectively.

1.2 MLink Application

For detailed instructions, click here.

1.3 BSLink Application

For detailed instructions, click here.

2. Important Notes

This protocol defines the communication method and interface specifications between the AI device and the client application. It is cross-platform and includes C++, Kotlin, and Java integration source code that can be used directly for secondary development, helping reduce integration effort.

• Client Application Scope
  The client application can control the full operating flow of the AI device, including AI mode switching, parameter configuration, real-time detection/tracking data reception, target snapshot reception, and manual gimbal/lens control.

• Communication Architecture and Protocol Rules

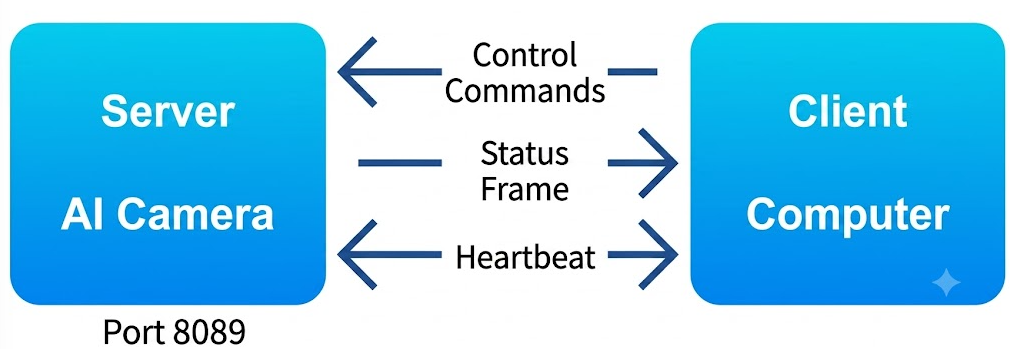

  1. Roles and Port: The AI device acts as the Server, and the client application acts as the Client. The AI communication port is 8089 and uses the T-JSON protocol for data exchange. The interval between uplink/downlink frames must not be less than 100 ms.
  2. Video Transmission: The AI device transmits video streams over RTSP and uses H.264 by default (switchable to H.265 through the T-JSON protocol). The video port is 554. After the AI gimbal camera powers on, the RTSP server starts automatically and waits for on-demand playback requests. The client application can request the stream by RTSP URL.
  3. Protocol Boundary: The T-JSON protocol is used only for control commands and status data interaction; it does not carry video streams. Standard RTSP parsing must be used for video stream decoding.
  4. The MLink application already provides Kotlin source code for video decoding and display and can be used as a direct reference.

• Network Keepalive Rules
  All devices connected to the AI device must follow the heartbeat keepalive rules to ensure link stability.

3. T-JSON Communication Protocol

The T-JSON communication protocol is used between the client and the AI device to control and configure the AI device, retrieve status messages, manually control the gimbal and lens, and receive target snapshots.
The T-JSON protocol consists of the JSON Command Protocol and the Target Snapshot Protocol, both transmitted through port 8089.

In the following frame descriptions, Tofu products represent the server side, while the customer's client application or integration platform represents the client side.

🟢 JSON Command Protocol Format:

Frame Type Table:

S→C: Device to client
C→S: Client to device
C→S→C: Client queries the device, and the device replies
Bidirectional: Client and device both exchange the frame

3.1 Target Snapshot Protocol

🟢 Target Snapshot Protocol Format:

After the image snapshot (target crop) function is enabled, the cropped image of each detected target is sent in real time over the same port as JSON via Socket. Each target snapshot is packetized independently. The transmission period is 300 ms (150 ms for Tofu6/7 snapshots). For example, if there are 3 targets in the image, the protocol sends three independent Socket packets.

Position Info: The coordinate position of the cropped image in the original image. In order, it contains Left X-coordinate (2Byte), Top Y-coordinate (2Byte), Width (2Byte), and Height (2Byte). The coordinate origin is at the upper-left corner of the image (X=1, Y=1).
Frame Length: The number of bytes in the JPEG image data, corresponding to N in the table above.
Checksum: The combined checksum of the 7 bytes 0xEB + 0x92 + 0x04 + Frame Length.

3.2 48M-Tofu7 Image Protocol Format

🟢 48M-Tofu7 Image Protocol Format:
This protocol applies only to 48M-Tofu7.

For 48M-Tofu7, please refer to sections 4.1.1, 4.11~4.14, and 5.1~5.2. These sections are marked in dark blue in this file.

48M-Tofu7 transmits TCP data in JPG image file format. The port is the same as TJSON, which is 8089, and the device acts as the TCP Server.

Frame Header Information Table:

To avoid congestion on 100 Mbps networks, only the image data of the currently recognized frame is pushed.
One full-frame image is split into several small packets, each no larger than 1400Byte, and reassembled after reception.
In the segmented packets of the same full-frame image, the first 14 bytes of the frame header table should remain the same.
The current packet number starts from 0, and the frame-header variable data uses little-endian format.
The full-frame image sequence number corresponds to the 48M image sequence number in the target information, with an increment interval of 5 (recognition frame interval).

4. JSON Payload Definitions

4.1 Server-to-Client Payload Definitions

During AI operation, two categories of information are pushed: AI analytics data and device status data. Both are actively reported by the AI device according to the current work mode.

4.1.1 AI Analytics Data

The AI device actively reports this payload when targets are detected or while tracking is in progress.

AI Analytics JSON Schema:

🪄₁
Box-selection tracking refers to a tracking mode based on a fixed-size square selection area.

🪄₂
Index is used only on 48M-Tofu7 products.

Object Format Description:

🪄₁
There are up to 4 target classes. The numeric mapping to names changes depending on the selected model.

🪄₂
Point describes the target box position, with the upper-left corner as origin (0, 0).
Value ranges:
Visible-camera: Left, Right 0-1919; Top, Bottom 0-1079.
Thermal: Left, Right 0-719; Top, Bottom 0-575.
During tracking, only the tracked target coordinates are pushed. When tracking is lost, the coordinates are all 0, 0, 0, 0.

🪄₃
Not all devices provide Distance. If available, the unit is meters (m), rounded to one decimal place.

🪄₄
Angle is disabled by default and supported only by some integrated devices. The gimbal origin is (0°, 0°). The unit is degrees (°), rounded to one decimal place.

🪄₅
In 48M-Tofu7, newly detected/tracked targets are assigned an Object ID in the range 1-65535. After overflow, counting restarts from 1.

JSON target detection push example:

{
  "ControlType": "AIInfo", // Control type indicating an AI algorithm information push
  "WorkMode": 1,           // Work mode, 0x01 means detection mode
  "ObjectCount": 2,        // Total number of detected targets
  "CurrentTime": "2026-07-29T16:45:22.356+08:00", // Current time
  // 2026-07-29: year-month-day
  // T: separator between date and time (required by ISO; cannot be replaced by a space)
  // 16:45:22: hour:minute:second
  // .356: milliseconds, always 3 digits
  // +08:00: time-zone offset, UTC+8 for Beijing time; use Z for UTC, e.g. 2026-07-29T08:45:22.356Z

  "Object": {
    "01": {
      "Class": 161, // Target class, 0xA1 means person
      "Points": {
        "Left": 100,
        "Top": 100,
        "Right": 200,
        "Bottom": 200
      },
      "Distance": 1066.0,
      "Angle": {
        "Hor": 12.3,
        "Ver": 1.3
      }
    },
    "02": {
      "Class": 162, // Target class, 0xA2 means vehicle
      "Points": {
        "Left": 300,
        "Top": 100,
        "Right": 400,
        "Bottom": 200
      },
      "Distance": 1182.0,
      "Angle": {
        "Hor": 17.1,
        "Ver": -1.0
      }
    }
  }
}

48M-Tofu7 JSON target detection push example:

{
  "ControlType": "AIInfo",
  "WorkMode": 1,
  "ObjectCount": 3,
  "Index": 32240,

  "Object": {
    "01": {
      "Class": 164,
      "Points": {
        "Left": 400,
        "Top": 1200,
        "Right": 420,
        "Bottom": 1220
      },
      "TrackChain": [
        {
          "Left": 400,
          "Top": 1200,
          "Right": 420,
          "Bottom": 1220
        }
      ]
    },
    "02": {
      "Class": 164,
      "Points": {
        "Left": 1600,
        "Top": 4900,
        "Right": 1620,
        "Bottom": 4930
      },
      "TrackChain": [
        {
          "Left": 1950,
          "Top": 4950,
          "Right": 1970,
          "Bottom": 4970
        },
        {
          "Left": 1800,
          "Top": 4960,
          "Right": 1820,
          "Bottom": 4980
        },
        {
          "Left": 1700,
          "Top": 4990,
          "Right": 1720,
          "Bottom": 5010
        },
        {
          "Left": 1600,
          "Top": 4900,
          "Right": 1620,
          "Bottom": 4930
        }
      ]
    },
    "03": {
      "Class": 164,
      "Points": {
        "Left": 3300,
        "Top": 1500,
        "Right": 3400,
        "Bottom": 1600
      },
      "TrackChain": [
        {
          "Left": 3180,
          "Top": 1550,
          "Right": 3260,
          "Bottom": 1640
        },
        {
          "Left": 3300,
          "Top": 1500,
          "Right": 3400,
          "Bottom": 1600
        }
      ]
    }
  }
}

JSON push example during tracking:

{
  "ControlType": "AIInfo",
  "WorkMode": 2,
  "ObjectCount": 1,
  "CurrentTime": "2026-07-29T16:45:22.356+08:00",

  "Object": {
    "01": {
      "Class": 177,
      "Points": {
        "Left": 220,
        "Top": 450,
        "Right": 250,
        "Bottom": 490
      },
      "Distance": 1055.0,
      "Angle": {
        "Hor": 122.8,
        "Ver": -30.9
      }
    }
  }
}

4.1.2 Device Status Data

The AI device actively reports this information every 200 ms.

Device Status JSON Schema:

🪄₁
Latitude/longitude, ranging, and similar information requires device support. Not all devices provide these functions by default. The serial protocol for passing latitude/longitude and ranging information to the device is described in the T-Ser Protocol.

JSON example:

{
  "ControlType": "ZoomInfo",
  "ZoomInfo": 3.6,
  "ZoomInfoIR": 1.5,
  "PTZInfoH": -50.3,
  "PTZInfoV": 16.4,
  "LaserRange": 810.0,
  "CamShowMode": 0,
  "Latitude": "39.8365025N",
  "Longitude": "116.2874531E",
  "Height": 589.0,
  "CurrentTime": "2026-07-29T16:45:22.356+08:00"
}

4.2 Client-to-Server Payload Definitions

This section includes work mode configuration and serial pass-through.

4.2.1 Work Mode

Work Mode Configuration Command Format:

🪄₁
Auto zoom means automatic zooming during tracking according to target size.

P2Track configuration is required in click-to-track and box-selection tracking modes. Details are shown below.

🪄₁
The upper-left corner of the image is the origin (1,1). Center is the target center coordinate.

🪄₂
In click-to-track mode, the default Distance = 30.
In box-selection tracking mode, either Distance (square tracking box) or DistanceX/Y (arbitrary rectangle) can be used.

JSON example:

{
  "ControlType": "SetWorkMode",
  "SetWorkMode": 1
}

P2Track is required only in click-to-track mode and box-selection tracking mode. Click-to-track requires the clicked coordinates; Distance defaults to 30. If the clicked coordinate falls inside a detected target region, that target is locked for tracking.

Box-selection tracking uses the center coordinate and the tracking box width/height information.

Click-to-track JSON example:

{
  "ControlType": "SetWorkMode",
  "SetWorkMode": 3,
  "P2Track": {
    "Center": {
      "X": 310,
      "Y": 660
    },
    "Distance": 64
  }
}

Box tracking JSON example:

{
  "ControlType": "SetWorkMode",
  "SetWorkMode": 4,
  "P2Track": {
    "Center": {
      "X": 240,
      "Y": 330
    },
    "DistanceX": 36,
    "DistanceY": 28
  }
}

4.2.2 Serial Pass-Through

Serial Pass-Through Command Format:

🪄₁
On visible-camera devices, if SerialType = PELCO_D, data is sent to the gimbal; if SerialType = VISCA, data is sent to the camera.

🪄₂
When using the LIR thermal core provided by Tofu, set SerialType=VISCA, but the actual command is still sent using the PELCO_D protocol. In this case, the PELCO_D device ID must be changed to 0x02.
On dual-input devices (Tofu6), use SerialType=VISCAIR for thermal-core serial pass-through.

For details of Pelco-D and VISCA commands, see [PELCO-D Gimbal Control and VISCA Lens Control Protocol].
The Pelco-D serial pass-through interface can also be used to send [non-standard ExPelco-D high-precision gimbal control protocol] commands (if supported by the gimbal).

JSON example:

{
  "ControlType": "SerialControl",
  "SerialType": "PELCO_D",
  "SerialData": {
    "Lens": 7,
    "Data": "FF01000800FF08"
  }
}
/*
Meaning of command FF01000800FF08:
• Device address: 0x01
• Operation: move Up, maximum vertical speed, horizontal speed stopped
• Checksum: 0x08
*/

JSON example for thermal lens zoom-in control:

{
  "ControlType": "SerialControl",
  "SerialType": "VISCAIR",
  "SerialData": {
    "Lens": 7,
    "Data": "FF020020000022"
    /*
    • FF: sync byte (fixed value)
    • 02: device address (0x02 here)
    • 00: command category (control command)
    • 20: specific command (zoom in)
    • 22: checksum
    */
  }
}

4.3 Client Query: Image Parameters

The query frame format is as follows, with a fixed length of 7Byte.

Query response:

JSON Content:

🪄₁
Typical values:
Visible-camera person/vehicle recognition: 0 × 10 + 2 = 2
Thermal drone recognition: 1 × 10 + 4 = 14

🪄₂
Available only on camera+AI integrated modules or gimbal camera devices.
Visible-camera resolution: 2M = 2 megapixels, 4M = 4 megapixels.
Thermal resolution: S = 640x512, U = 1280x1024.

JSON example:

{
  "ControlType": "ImageSetting",
  "ImageSize": 0,
  "ImageBit": 4096,
  "ImageCode": 0,
  "WorkMode": 1,
  "PipShow": 4,
  "Model": 13,
  "MaxVisFL": "40x4M264",
  "MaxIRFL": "5xS150"
}

4.4 Client Command: Detection Area

Set target detection area:

JSON Content:

🪄₁
When setting an area, the upper-left corner of the image is (1,1). AreaPoint supports up to 6 points, and the number of areas AreaItem supports up to 8.

JSON example:

1. Set detection area:

{
  "ControlType": "SetAreaDot",
  "WarnArea": {
    "AreaItem": 1,
    "AreaPoint": [
      {
        "X": 120,
        "Y": 100
      },
      {
        "X": 310,
        "Y": 100
      },
      {
        "X": 310,
        "Y": 360
      },
      {
        "X": 120,
        "Y": 360
      }
    ]
  }
}

3. Cancel detection area:

{
  "ControlType": "SetAreaDot",
  "WarnArea": {
    "AreaItem": 0
  }
}

4.5 Client Command: Latitude/Longitude and Time

Set latitude/longitude and time:

JSON Content:

🪄₁
Applicable to fixed-installation devices used together with map linkage.

Set latitude/longitude / time:

{
  "ControlType": "SetLatlng",
  "Latitude": "39.8365020N",
  "Longitude": "116.2874510E",
  "CurrentTime": "2026-07-29T16:45:22.356+08:00"
}

4.6 Client Command: Display Mode

JSON Content:

JSON example:

{
  "ControlType": "PipShowSetting",
  "PipShow": 0
}

4.7 Client Command: Digital Zoom

JSON Content:

🪄₁
Digital zoom is a continuous zoom from 1X to 2X.

JSON example:

{
  "ControlType": "DigitalZoomSetting",
  "DigitalZoom": 0
}

4.8 Client Command: Position Reset

JSON Content:

🪄₁
When position reset is enabled, if auto tracking ends and no new target appears for more than 3 seconds, preset position 100 is called automatically. Supported only on Tofu6/7.

JSON example:

{
  "ControlType": "ResetPosition",
  "ResetPosition": 1
}

4.9 Client Command: Model Selection

JSON Content:

🪄₁

1. Models 2, 3, 4 are standard models; 5, 6 are non-standard models. Please contact us for details.

2. 0 and 1 are band-switch commands. Send them only when switching optical bands. Model changes within the same band do not require this command. Supported only on dual-input Tofu3 and Tofu6.

JSON example:

// Switch from the visible-camera person/vehicle model to the thermal drone model

// Step 1:
{
  "ControlType": "ModelSetting",
  "Model": 1
}

// Step 2:
{
  "ControlType": "ModelSetting",
  "Model": 4
}

4.10 Client Command: Target Snapshot Upload

JSON Content:

JSON example:

{
  "ControlType": "ImageUpload",
  "Upload": 1
}

4.11 Client Query: 48M-Tofu7 Parameters

Client frame send format:

Query response:

JSON Content:

JSON example:

{
  "ControlType": "48MTofu7Getting",
  "Tofu7PixSize": 0.8,
  "Tofu7MinFocalLength": 12,
  "Tofu6PixSize": 2.9,
  "Tofu6MinFocalLength": 6,
  "Tofu6ExpectedSize": 30,
  "Tofu6ZeroOffsetX": 0.2,
  "Tofu6ZeroOffsetY": 2.4,
  "PTZSerialportServerAddr": "192.168.1.66",
  "Tofu6IPAddr": "192.168.1.200"
}

4.12 Client Command: 48M-Tofu7 Parameters

JSON Content:

JSON example:

{
  "ControlType": "48MTofu7Setting",
  "Tofu7PixSize": 0.8,
  "Tofu7MinFocalLength": 12,
  "Tofu6PixSize": 2.9,
  "Tofu6MinFocalLength": 6,
  "Tofu6ExpectedSize": 30,
  "Tofu6ZeroOffsetX": 0.2,
  "Tofu6ZeroOffsetY": 2.4,
  "PTZSerialportServerAddr": "192.168.1.66",
  "Tofu6IPAddr": "192.168.1.200"
}

4.13 Client Query: 48M-Tofu7 Ignore Areas

Client frame send format:

Query response:

JSON Content:

JSON example:

{
  "ControlType": "GetIgnoreArea",
  "AreaCount": 2,
  "IgnoreArea": [
    {
      "AreaItem": 1,
      "AreaPoint": [
        {
          "X": 120,
          "Y": 100
        },
        {
          "X": 310,
          "Y": 100
        },
        {
          "X": 310,
          "Y": 360
        },
        {
          "X": 120,
          "Y": 360
        }
      ]
    },
    {
      "AreaItem": 1,
      "AreaPoint": [
        {
          "X": 400,
          "Y": 200
        },
        {
          "X": 650,
          "Y": 200
        },
        {
          "X": 650,
          "Y": 450
        },
        {
          "X": 400,
          "Y": 450
        }
      ]
    }
  ]
}

4.14 Client Command: 48M-Tofu7 Ignore Areas

Client frame send format:

JSON Content:

Set-area JSON example:

{
  "ControlType": "SetIgnoreArea",
  "AreaCount": 2,
  "IgnoreArea": [
    {
      "AreaItem": 1,
      "AreaPoint": [
        {
          "X": 120,
          "Y": 100
        },
        {
          "X": 310,
          "Y": 100
        },
        {
          "X": 310,
          "Y": 360
        },
        {
          "X": 120,
          "Y": 360
        }
      ]
    },
    {
      "AreaItem": 1,
      "AreaPoint": [
        {
          "X": 400,
          "Y": 200
        },
        {
          "X": 650,
          "Y": 200
        },
        {
          "X": 650,
          "Y": 450
        },
        {
          "X": 400,
          "Y": 450
        }
      ]
    }
  ]
}

Delete-area JSON example:

{
  "ControlType": "SetIgnoreArea",
  "IgnoreArea": {
    "AreaItem": 0
  }
}

5. ACK and Heartbeat Frames

5.1 ACK Frames

Both server and client must reply with an ACK after receiving a frame. If no ACK is received within 15 seconds, the server forcibly disconnects the client, and the client must reconnect.
In the provided sample application, the client sends a heartbeat every 5 seconds, so the client can remain connected even without sending ACKs in response to server data.

Status code types:

5.2 Heartbeat Frames

The client must send a heartbeat frame to the server at least once within every 15 seconds. After the server receives the client's heartbeat, it replies within 1 second. If the client times out waiting for the reply, it should retransmit the frame.

If the server does not receive the client's heartbeat frame for 15 consecutive seconds, it considers the client offline and stops sending and receiving data.

If the client does not receive any server reply for 15 consecutive seconds, the client should treat the connection as interrupted and reconnect.

6. Typical 48M-Tofu7 / Radar Cueing Workflow

Step 1: Obtain valid target bearing and distance from the wide-area camera/radar. To ensure stability, first send a command to disable the Tofu AI function.

JSON example:

{
  "ControlType": "SetWorkMode",
  "SetWorkMode": 0
}

Step 2: After Tofu AI is disabled, wait 150 ms (this wait can be skipped if no gimbal control commands were being sent previously), solve the required gimbal camera orientation, and send Pelco-D stop / pan set / tilt set commands via TJSON serial pass-through. It is recommended to keep a 150 ms interval between commands to avoid the gimbal failing to respond.

JSON example:

// Send gimbal stop
{
  "ControlType": "SerialControl",
  "SerialType": "PELCO_D",
  "SerialData": {
    "Lens": 7,
    "Data": "FF010000000001"
  }
}

// Wait 150 ms

// Send pan set
{
  "ControlType": "SerialControl",
  "SerialType": "PELCO_D",
  "SerialData": {
    "Lens": 7,
    "Data": "FF01004B******"
  }
}

// Wait 150 ms

// Send tilt set
{
  "ControlType": "SerialControl",
  "SerialType": "PELCO_D",
  "SerialData": {
    "Lens": 7,
    "Data": "FF01004D******"
  }
}

During rotation, the real-time PTZ information returned by the device can be used to confirm whether the gimbal has reached the target angle.

JSON example:

{
  "ControlType": "ZoomInfo",
  "ZoomInfo": 3.6,
  "ZoomInfoIR": 1.5,
  "PTZInfoH": -50.3,
  "PTZInfoV": 16.4,
  "LaserRange": 810.0,
  "CamShowMode": 0,
  "Latitude": "39.8365025N",
  "Longitude": "116.2874531E",
  "Height": 589.0
}

Step 3: Based on the distance information, calculate the required zoom ratio and send VISCA/VISCAIR zoom-setting commands through TJSON serial pass-through. Lens control commands may be sent together with horizontal gimbal control and do not need to wait for 150 ms.

Visible-camera:

JSON example:

{
  "ControlType": "SerialControl",
  "SerialType": "VISCA",
  "SerialData": {
    "Lens": 10,
    "Data": "81010983140p0q0r0sFF"
  }
}

Zoom formula reference: 0.24857 × distance (m) / minimum lens focal length (mm)

Thermal:

JSON example:

// Thermal (when using the VISCA protocol):
{
  "ControlType": "SerialControl",
  "SerialType": "VISCAIR",
  "SerialData": {
    "Lens": 10,
    "Data": "81010983140p0q0r0sFF"
  }
}

// Thermal (when using the Pelco-D protocol):
{
  "ControlType": "SerialControl",
  "SerialType": "VISCAIR",
  "SerialData": {
    "Lens": 7,
    "Data": "FF02004Fpqrs**"
  }
}

Zoom formula reference: 0.17143 × distance (m) / minimum lens focal length (mm)

Step 4: Send a TJSON command to start auto tracking.

JSON example:

{
  "ControlType": "SetWorkMode",
  "SetWorkMode": 2
}

Step 5: Monitor the target tracking information returned by TJSON. If no target tracking information is received within 500 ms, it means either there is no target in the frame or the target is not locked; in this case, restart from Step 1.
If a locked target tracking message is received, Tofu has already taken over gimbal control. Do not send angle-setting commands again.

JSON example for receiving tracking target information:

{
  "ControlType": "AIInfo",
  "WorkMode": 2,
  "ObjectCount": 1,

  "Object": {
    "01": {
      "Class": 177,
      "Points": {
        "Left": 220,
        "Top": 450,
        "Right": 250,
        "Bottom": 490
      },
      "Distance": 1055.0,
      "Angle": {
        "Hor": 122.8,
        "Ver": -30.9
      }
    }
  }
}

Step 6: When you need to exit tracking or switch to track a new target, first send a TJSON command to disable AI.
