🔥Tofu6 EdgeAI Module

Connectors and Protocols

◻️ Thermal camera lens conrtrol: 3.3V TTL，Protocol:Pelco-D，9600bps。
◻️ Visual camera lens control: 3.3V TTL，Protocol:VISCA，9600bps。
◻️ Gimbal control: RS485，Protocol:Pelco-D/LPP，9600bps。

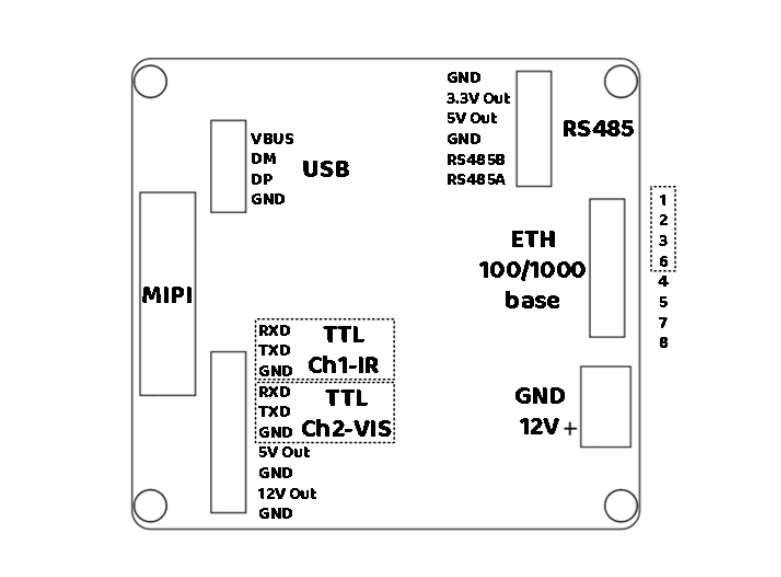

Interface Definition

Structure dimensions

◻️3D model download

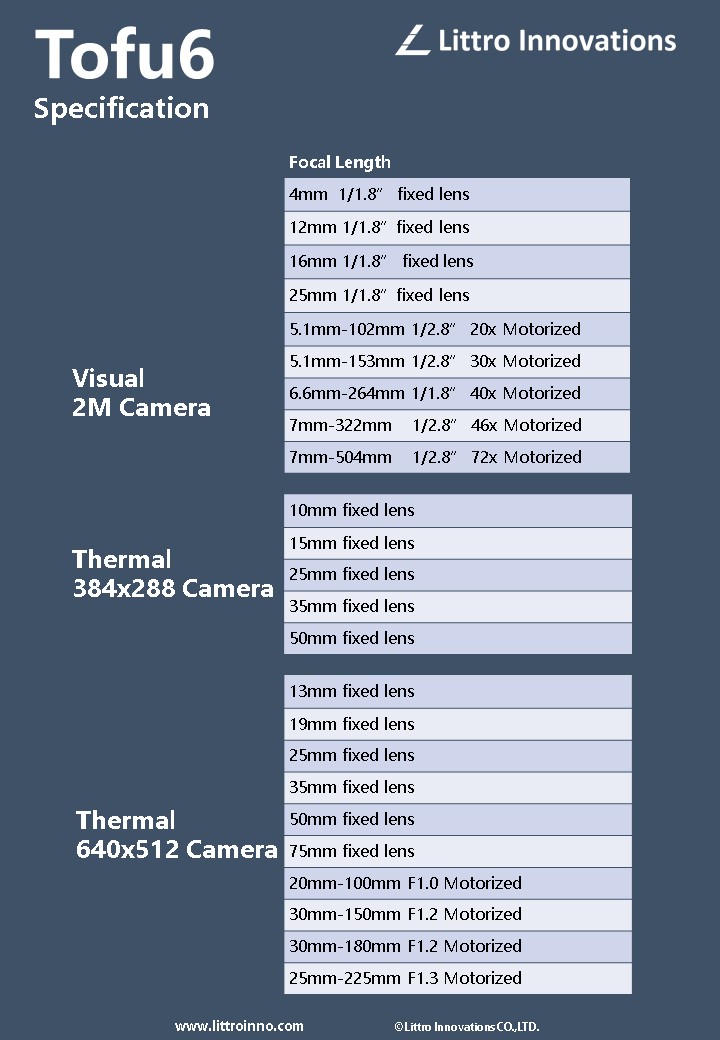

Tofu6 with different camera input

🟢 Tofu6 with thermal camera and visual camera input

🟢 Tofu6 with digital visual camera input

🟢 Tofu6 with digital thermal camera input
Support BT.656/BT.1120 video input. The image is Tofu6 with 1280X1024 resolution thermal camera.
